jinan LINKIN TRADE co., ltd produce forged flanges, carbon steel flanges, standards include ANSI, ASME, DIN, UNI, EN1092-1, JIS, BS, SABS, GOST, NS, AS, types include SO, WN, BLIND, THREADED, PLATE, LOOSE

    HOME > 플랜지 > ANSI CLASS 1500-2500 FLANGE
  ANSI B16.5 1500LBS, 2500LBS FLANGE
stampa

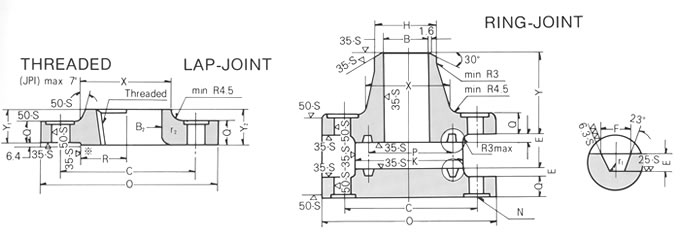

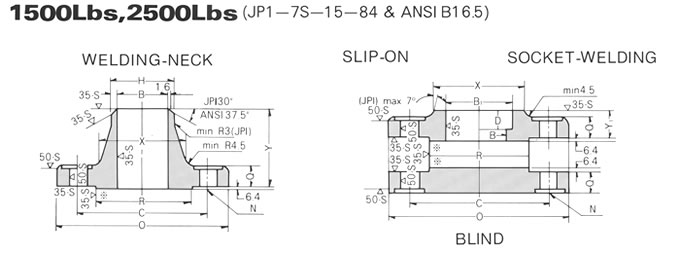

ANSI B16.5 CL1500-2500 FLANGE DRAWING, JINAN LINKIN TRADE CO., LTD
ANSI B16.5 CL1500-2500 FLANGE DRAWING, JINAN LINKIN TRADE CO., LTD
LINKIN FLANGES
1. 기준: ANSI B16.5
2. 종류: PLRF, SORF, WNRF, BLIND
3. 압력등급: 1500LBS - 2500LBS
4. 사이즈: 15A - 2000A
5. 강철: SS400, SF440A, SF390A
6. 생산공예: Forged

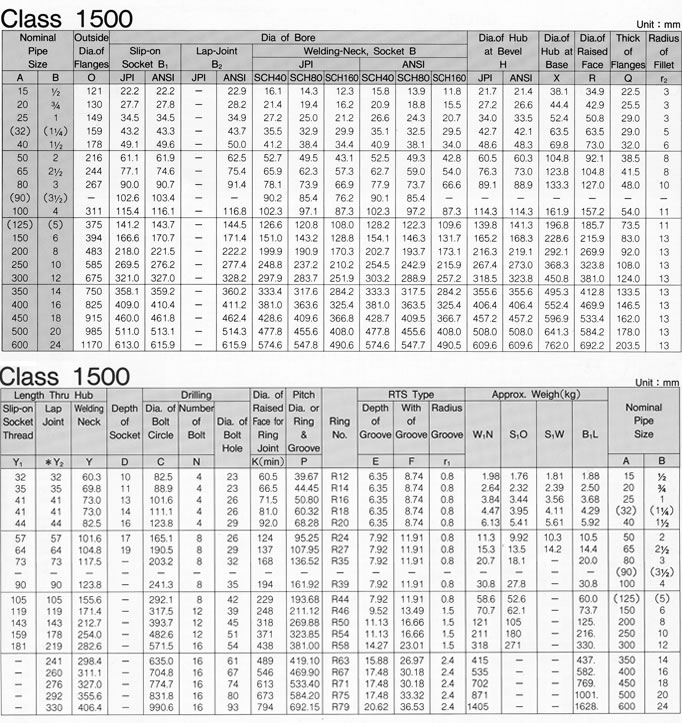

ANSI B16.5 CLASS 1500 FLANGE SPECIFICATIONS, JINAN LINKIN TRADE CO., LTD

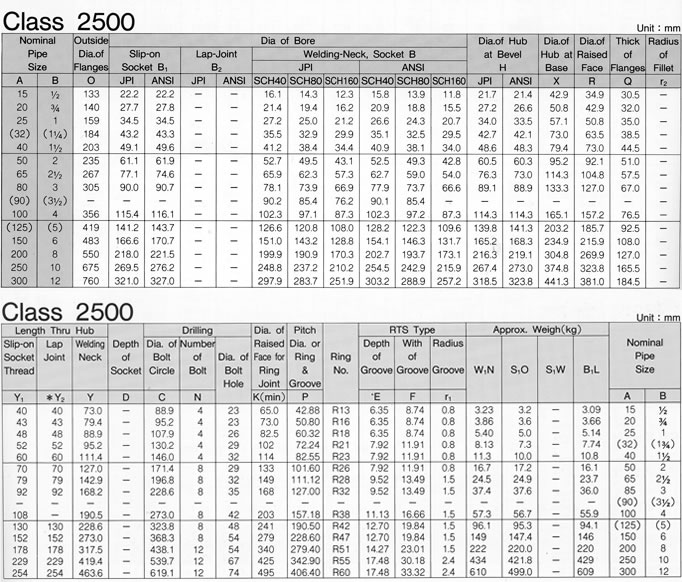

ANSI B16.5 CLASS 2500 FLANGE SPECIFICATIONS, JINAN LINKIN TRADE CO., LTD
